Switching Power Supply

7.5V 42A 300W Switching Power Supply

Features
●  Input voltage 110 /230VAC 50/60Hz or 200~360VDC
●  AC input range selectable by switch 110V or 230VAC
●  Output voltage select able from 5Vdc to 48Vdc for 320W series
●  Protections: Short Circuit / Overload / Over Voltage Protection
●  100% full load burn-in test for 2Hrs to make every unit reliable
●  Forced air cooling by built-in DC ball bearing fan
●  Output voltage is adjustable by +/-10% of the rated output
Support Hotline:+86-0755-29665062

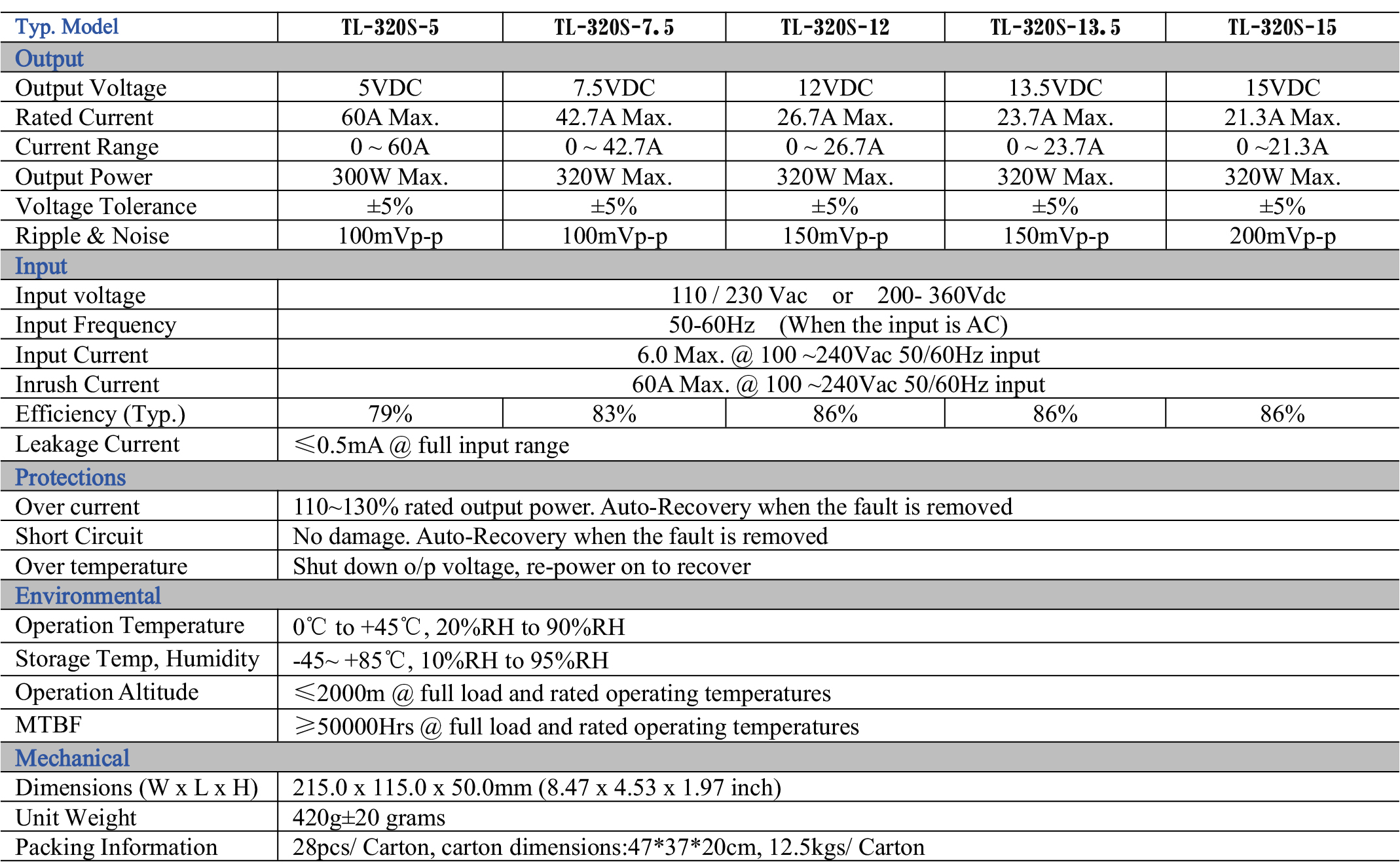

Technical Specification

Safety Standards
●  IEC62368-1 CB report for worldwide use
●  EN 62368-1:2014/A11:2017 for European Union
●  UL62368-1 + CAN/CSA 62368-1 for USA and Canada
●  AS/NZS 62368.1:2018 for Australia and New Zealand
●  J62368-1 for Japan and GB4943.1 for China market.

Product Description
It is a low cost and high reliable 7.5Vdc 42.7A 320W single output constant voltage switching power supply solution with 110V / 230VAC input and the input range is selectable by switch. The product is designed and manufactured strictly according to the international safety standards. The output voltage is adjustable between 6.75V and 8.25V. The switching power supply utilizes aluminum alloy housing built-in a on/off controllable fan.

This 7.5Vdc 42.7A power supply is suitable for various types of new energy, railway, smart farming
smart logistics, smart transportation, industrial robots, laser galvanometer, CNC machining, conventional fire alarm panel and so on.

PDF 7.5V 42A 300W Switching Power Supply
