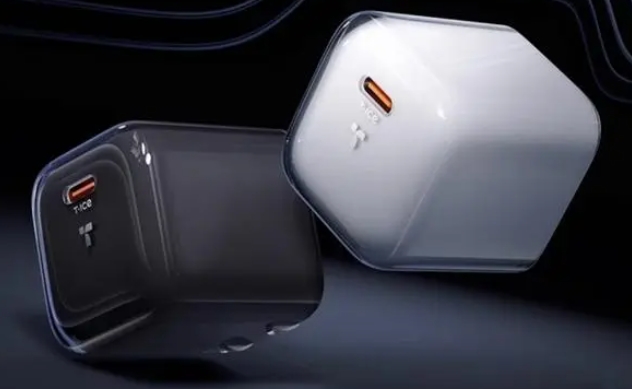

1. The meaning of switching power supply chargerA switching power supply charger refers to an electronic product that uses switching power supply technology for charging. It can convert AC power into DC power and provide electrical energy to charge the device. The switching power supply charger is currently one of the most widely used chargers, and its advantages compared to other chargers mainly include high power efficiency, stable output level, and strong adaptability.2. Working principle of switching power supply chargerThe working principle of a switching power supply charger is to convert AC power input into high-frequency AC power through switching power supply technology, and generate the required DC power through transformer transformation to charge the device. There are two main types of switch power chargers: AC/DC and DC/DC. AC/DC switch power chargers are mostly used for mobile phones, tablets, and other devices, while DC/DC switch power chargers are mostly used for camer...

Open frame power supply is an electronic device mainly used to provide stable power supply for various electronic products. As one of the core components of electronic products, the quality of open frame power supply is directly related to the performance and stability of the entire product. Therefore, choosing a high-quality open frame power supply manufacturer is crucial.Open Frame Power Supply of Shenzhen Kinri EnergyThere are many open frame power supply manufacturers in the market, but it is not easy to choose a manufacturer that provides high-quality products. At this point, consumers need to pay attention to some key factors, such as the reputation of the manufacturer, the quality and performance of the product, etc. Only by choosing a reputable and high-quality manufacturer can we guarantee the purchase of open frame power products that meet our needs.A high-quality open frame power supply manufacturer should have advanced production equipment and technology to ensure product...

Open frame type switching power supply is one of the SMPS format. This format switching power supplies will be used inside the product.When designing an AC-DC bare board regulated power supply, the following points should be noted:1. It is necessary to confirm the size of the dimensions. Because these types of power supplies are used inside the product, the assembly space is limited.2. Determine the fixing method and size of the power supply, as well as the connection method of input and output. This type of power supply usually requires a specific connection method that matches the product.3. Input Voltage Range: Ensure the power supply can handle the expected AC input voltage range, considering variations and fluctuations in the mains supply.4. Rectification and Filtering: Select appropriate rectifier diodes and capacitors for efficient AC to DC conversion and filtering to reduce ripple voltage.5. Transformer Design: Choose the right transformer based on the power requirements, volt...

The charger detects when the battery is fully charged through a process called "voltage regulation." Here's how it works:1. Constant current charging: When you connect a battery to a charger, the charger initially supplies a constant current to the battery. This current flows through the battery and charges it.2. Voltage rise: As the battery charges, its voltage gradually increases. The charger monitors the voltage of the battery.3. Endpoint detection: The charger is designed to detect a specific voltage level that indicates the battery is fully charged. This voltage level is typically determined by the battery manufacturer and is based on the battery's chemistry and characteristics.4. Switch to trickle charging or float charging: Once the charger detects that the battery voltage has reached the full charge level, it may switch to a different charging mode. This could be trickle charging, where a small current is maintained to keep the battery topped up, or float charging, where the c...

BUS communication refers to a method of communication between devices in a system using a shared bus. In the context of a battery charger, BUS communication can be used to transfer data and control signals between the charger and other components in the charging system.Here are some common uses of BUS communication in battery chargers:1. **Monitoring and control**: The charger can send information about the charging status, battery voltage, current, and temperature to a central control unit or display. This allows for real-time monitoring and control of the charging process.2. **Configuration and programming**: Through BUS communication, the charger can be configured and programmed with specific charging parameters, such as charging voltage, current limit, and charging profiles.3. **Fault detection and diagnostics**: The charger can report any faults or errors to the system, enabling timely troubleshooting and maintenance.4. **Battery management**: BUS communication can be used to int...

A remote power controller is a device that can remotely control the power on or off of a device through communication methods such as network or telephone. The following is a detailed answer about the remote power controller:remote power controller 1. Definition and FunctionA remote power controller is a device that integrates power control, power status monitoring, and telemetry functions. It can connect to the controlled device through a network or other communication protocol to achieve remote power control and status monitoring. The main functions include:Remote control of power supply: Users can turn on, off, and schedule the power supply of the controlled equipment at any time and anywhere through the network or telephone.Power status monitoring: The remote power controller can monitor the power status of the controlled equipment in real time, including parameters such as current and voltage, to ensure the stable operation of the equipment.Telemetry function: Through the remote...

What is a power supply control system?A power supply control system is a device or system used to control the power supply. It can control the output, input, and various parameters of the power supply to ensure the normal operation and safety of the equipment. A power supply control system typically consists of a power source, control circuit, and load. The power supply is the core part that provides electrical energy, the control circuit is responsible for regulating and monitoring the output of the power supply, and the load is the equipment served by the power system.Power supply control techniquesIn a power supply control system, the control circuit is a very important part. It can automatically or manually adjust the output of the power supply to meet the needs of the device. At the same time, the control circuit can also monitor the status of the power supply, timely detect and solve various problems, and ensure the normal operation and safety of the equipment.The power supply c...

The principle of frequency stabilization and voltage stabilization in variable frequency power supplies is mainly achieved through precise control of output voltage and frequency through digital signal processors (DSP) or microcontrollers (MCU).variable frequency power supplyIn a variable frequency power supply, the input power is first rectified and filtered to obtain a basically stable DC voltage. Then, through efficient power electronic devices such as IGBT, MOSFET, etc., the DC voltage is converted into AC voltage, and adjusted through a transformer to ultimately output the required voltage and frequency.During this process, DSP or MCU will continuously monitor the demand of the load and the waveform of the input power supply, adjust the output voltage and frequency according to the preset control algorithm, in order to achieve stable frequency and voltage regulation. Specifically, if the load demand increases, the DSP or MCU will automatically increase the output voltage and freq...

In today's rapidly changing technology, switching power supplies have become an indispensable part of our lives and work. However, sometimes we suddenly encounter a troubling phenomenon - the switching power supply inexplicably emits a lot of noise. What exactly is going on? Let's delve deeper together and unravel the mystery behind it.500W Switching Power SupplyThe Mystery of Switching Power Supply NoiseWhen we use electronic devices in our daily lives, we sometimes encounter situations where the switch power supply suddenly emits a lot of noise. What exactly is going on?Possible Cause AnalysisInductance issueUnder high-frequency current, if the quality of the inductor is poor, loose, or the magnetic core is saturated, it may vibrate and emit whistling noise.Transformer abnormalityTransformers with loose windings or loose iron cores are prone to vibration and noise during operation.Capacitor faultDamaged or degraded filtering capacitors can affect current stability, leading to noise....

An oscilloscope is an instrument used to measure electronic signals and can be used to measure the output ripple of a switching power supply. The following are the steps to measure the output ripple of a switching power supply using an oscilloscope:1. Prepare the oscilloscope and test probeFirstly, it is necessary to prepare an oscilloscope, a test probe, and relevant connecting wires. The testing probe should be selected with sufficient bandwidth and sensitivity to measure the output ripple of the switching power supply.2. Connect the oscilloscope and test probeConnect the oscilloscope and test probe through connecting wires and ensure that the input impedance of the probe matches the input impedance of the oscilloscope. It is also necessary to correctly connect the probe to the output terminal of the tested switch power supply.3. Set oscilloscope parametersTurn on the oscilloscope and select the appropriate measurement mode (such as AC coupling, DC coupling, etc.). Then, it is neces...

Argentina, a country on the South American continent, is renowned for its rich culture, unique scenery, and passionate people. For travelers, the adventure in Argentina is always full of surprises and fun. However, when you step onto this land, besides appreciating the scenery and experiencing culture, there is another important thing to pay attention to - the use of power adapters.Argentina's voltage standards and socket types are different from many other countries. Therefore, if you plan to use electronic devices here, such as mobile phones, laptops, or cameras, you need a suitable Argentine power adapter. Below, we will provide detailed information about Argentine power adapters to help you better deal with power issues during your travels.6W ROUTER POWR ADAPTER（Argentine power adapter）Voltage standards and socket types in ArgentinaThe voltage standard in Argentina is 220 volts and the frequency is 50 hertz. This means you need an adapter that can handle this voltage and frequency...

What are the requirements for the installation environment of EV charging stations? One article analysis, practical guide!With the popularization of electric vehicles, EV charging stations are receiving increasing attention. What environmental requirements should be considered when installing a EV charging station? This article will provide you with some useful information.240KW Ultra Fast DC EV Charging Station1. Parking space and power supply conditionsFirstly, you need to ensure that you have a suitable parking space. The charging station needs to be installed on a flat, open, and obstacle free ground so that vehicles can easily enter and exit. In addition, the installation position of the charging station should be as close as possible to the vehicle's charging port for easy connection.In terms of power conditions, you need to ensure that there is a power outlet near your parking space. If your parking space does not have a power outlet, you may need to consider retrofitting the p...

DefinitionBoth variable frequency power supply and industrial frequency power supply are power supply devices, but there are significant differences in their working principles and output frequencies.Power frequency power supply usually refers to a power supply that outputs a fixed frequency (50Hz, 60Hz, etc.), with stable output voltage and current, suitable for the power supply of most conventional electrical appliances. The variable frequency power supply can control the output frequency in real time according to the needs, and the frequency can be adjusted according to the needs, thereby meeting the working needs of different devices.variable frequency power supplyCharacteristic1. The working principle is different. Power frequency power supply mainly uses an AC power supply composed of transformers and rectifiers to output fixed frequency AC power. The variable frequency power supply uses a frequency converter to convert AC power into DC power for processing, and then uses an inv...

In today's field of electronic technology, the importance of power supply as the "power source" of various electronic devices is self-evident. Switching power supplies and linear power supplies, as two common types of power supplies, have significant differences in appearance, component functionality, and price. This article will delve into these differences from a professional perspective and uncover the mystery of switching power supplies and linear power supplies.100W Switching Power Supply1. Appearance dimensionSwitching power supplies often exhibit a compact and compact body shape, with intricate and efficient structural design. They are usually equipped with specialized cooling structures such as heat sinks to ensure stable heat dissipation during high-power operation. This perfect combination of compactness and functionality makes the switch mode power supply present a simple and exquisite appearance.Compared to others, the appearance of linear power sources may appear slightly...

The architecture design of charging station power supply needs to consider multiple factors to ensure its reliable, efficient, and safe operation. Here are some key points that designers need to pay attention to:7KW Smart AC EV Charging Station1. Power input: The charging station needs to be designed according to the local voltage and frequency. For example, charging posts in Chinese Mainland are usually designed for 220V/50Hz or 380V/50Hz input voltage. We need to consider the stability of the power supply and whether it is necessary to equip a converter from AC to DC.2. Conversion efficiency: AC to DC converters require high conversion efficiency to reduce energy loss and improve energy efficiency.3. Overload protection: The charging station needs to have an appropriate overload protection mechanism to prevent damage caused by excessive current or voltage.4. Short circuit protection: Short circuit protection should be included in the design to prevent damage caused by electrical sho...

Variable frequency power supply is a power electronic device that can convert AC power from mains power into adjustable frequency AC power. It can adjust the output voltage and frequency according to needs, providing a stable and reliable power supply for equipment operation. However, in actual use, some faults are often encountered, and this article will introduce these faults and solutions.frequency power supply1. Short circuitThe causes of short circuit faults may include: short circuit in the connecting circuit, output terminal failure, or equipment failure. Check if there are any faults in the connection lines, power output terminals, and equipment itself. If so, repair or replace them in a timely manner.2. Unstable output voltageThe unstable output voltage may be caused by unstable power supply voltage, load changes, aging of internal components in the power supply, damage to output filtering capacitors, poor contact of motor coils, and other reasons.Therefore, it can be solved...

The ripple of switching power supply mainly comes from five aspects: input low-frequency ripple, high-frequency ripple, common mode ripple noise caused by parasitic parameters, ultra-high frequency resonance noise generated during power device switching process, and ripple noise caused by closed-loop regulation control.250W Switching Power Supply1. Low frequency ripple is related to the filtering capacitor capacity of the output circuit. The capacity of a capacitor cannot increase indefinitely, resulting in residual low-frequency ripple output. After being attenuated by a DC/DC converter, the AC ripple exhibits low-frequency noise at the output of the switching power supply, which is determined by the ratio of the DC/DC converter and the gain of the control system. The ripple suppression of current controlled DC/DC converters is slightly improved compared to voltage controlled ones. But the low-frequency AC ripple at its output end is still relatively large. To achieve low ripple outp...

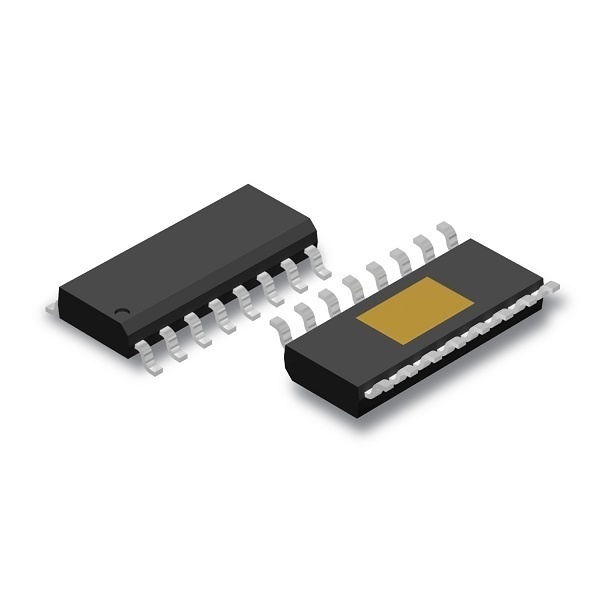

Switching power supply is a high-efficiency and highly reliable power conversion technology widely used in various electronic devices. The switching power supply chip is the core component of the switching power supply, which determines the performance and characteristics of the switching power supply. In this article, we will introduce several common switching power supply chips and their characteristics.1. UC3842UC3842 is a classic current mode PWM controller chip. It has the following characteristics:●  Internally integrated with functional modules such as oscillators, error amplifiers, PWM comparators, etc., the circuit design is simplified.●  The working frequency can reach 500kHz, suitable for high-frequency switching power supplies.●  It has a cycle by cycle current limiting function, which improves the reliability of the power supply.2.TL494TL494 is a dual output pulse width modulation chip. Its features include:●  Internally integrated with two error ampli...
