Safety Standards
●  IEC60601-1 CB report for worldwide use
●  UL ANSI/AAMI ES60601-1/CAN/CSA-C22.2 for USA
●  TUV BS EN/EN 60601-1 for European Union

Product Description
This is a highly reliable and small size AC/DC on board type 15W portable medical device power supply solution with wide range 90-264Vac input and designed strictly according to the international medical safety standards. The design is with a very low no load power consumption less than 0.1W and ultra-low leakage current.

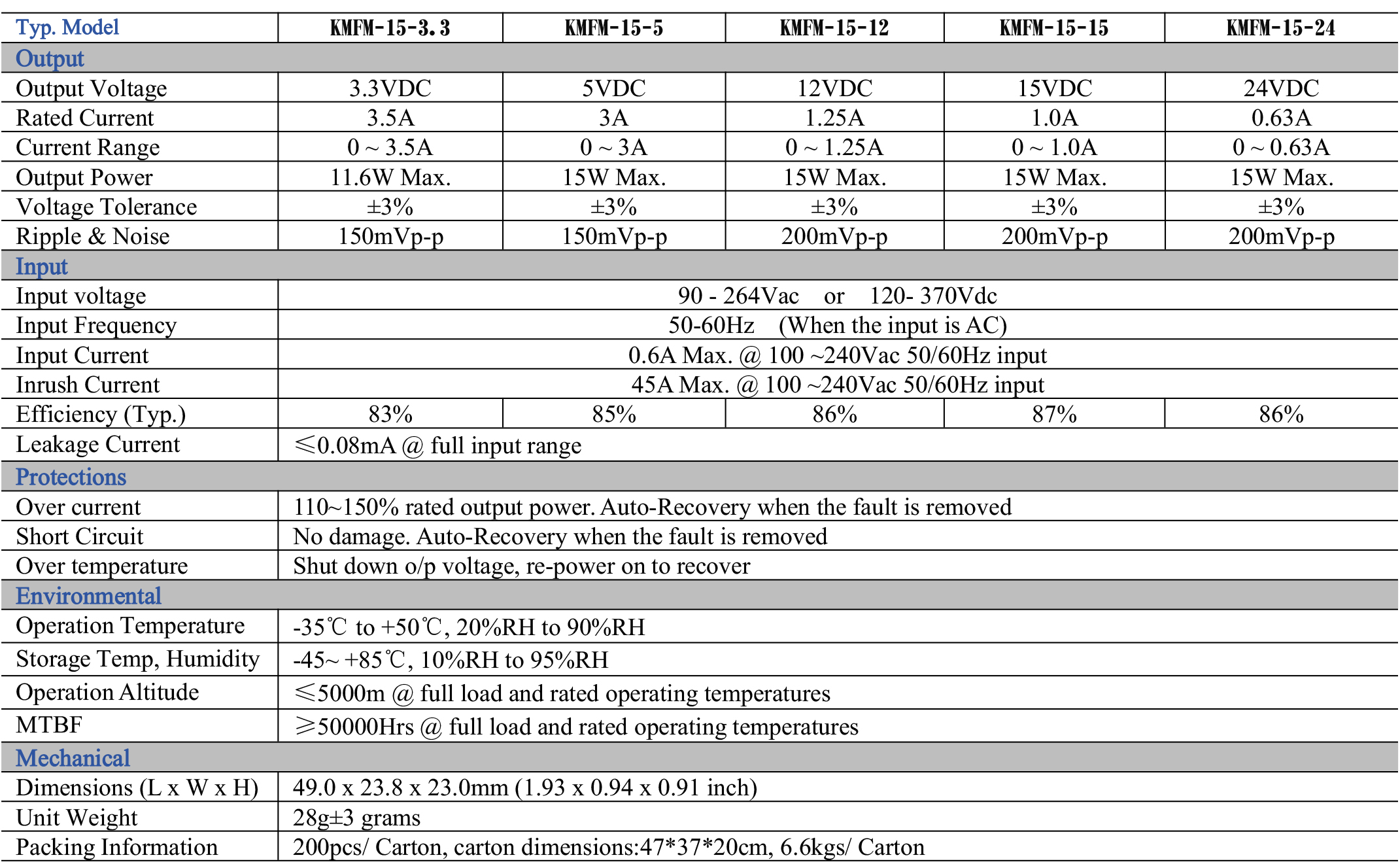

The entire series supplies different models with output voltages ranging between 3.3Vdc and 24Vdc that can satisfy the demands for various types of medical equipment such as portable medical device, mobile clinical workstation, medical computer monitor, medical examination instrument and so on. The 15W PCB type medical switching power supply is built-in full protections of over load / short circuit and over voltage with small and compact size of 49.0 x 23.8 x 23.0mm.
