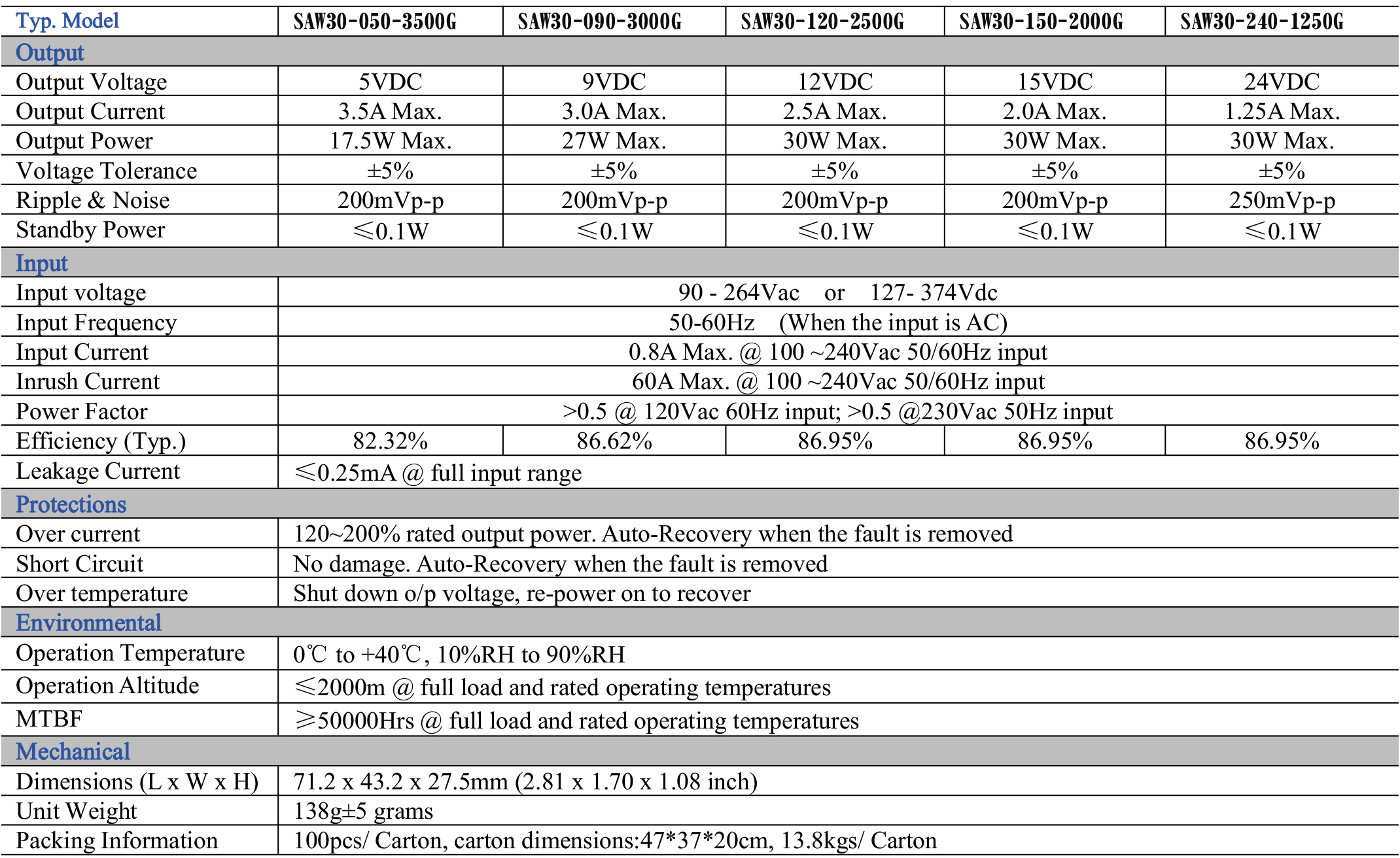

Technical Specification
Safety Standards
● IEC62368-1/IEC61558-1 CB report for worldwide use
● UL62368-1 + CAN/CSA 62368-1 for USA and Canada
● EN 62368-1:2014/A11:2017 for European Union
● AS/NZS 62368.1:2018 for Australia and New Zealand
● J62368-1 for Japan and K60950-1 for Korea market.
Product Description
It is a 30W wall style single output EU type switching power adapter solution with wide range 90-264Vac input and designed strictly according to the international safety standards. The entire series supplies different models with output voltages ranging between 5Vdc and 36Vdc that can satisfy the demands for various types of consumer electronic devices, office facilities, telecommunication devices, industrial equipments and so on.
With the efficiency up to 86.95% and no load consumption power <0.1W, this 30W wall mounted power adapter is designed according to worldwide satisfy regulations and adopts the 94V-0 flame retardant plastic housing and the temperature resistance is up to 120 degrees.
24V AUDIO VIDEO POWER ADAPTER(PDF) | 24V AUDIO VIDEO POWER ADAPTER |
