Safety Standards
●  IEC62368-1 CB report for worldwide use
●  UL62368-1 + CAN/CSA 62368-1 for USA and Canada
●  EN 62368-1:2014/A11:2017 for European Union
●  AS/NZS 62368.1:2018 for Australia and New Zealand
●  J62368-1 for Japan and GB4943.1 for China market.

Product Description

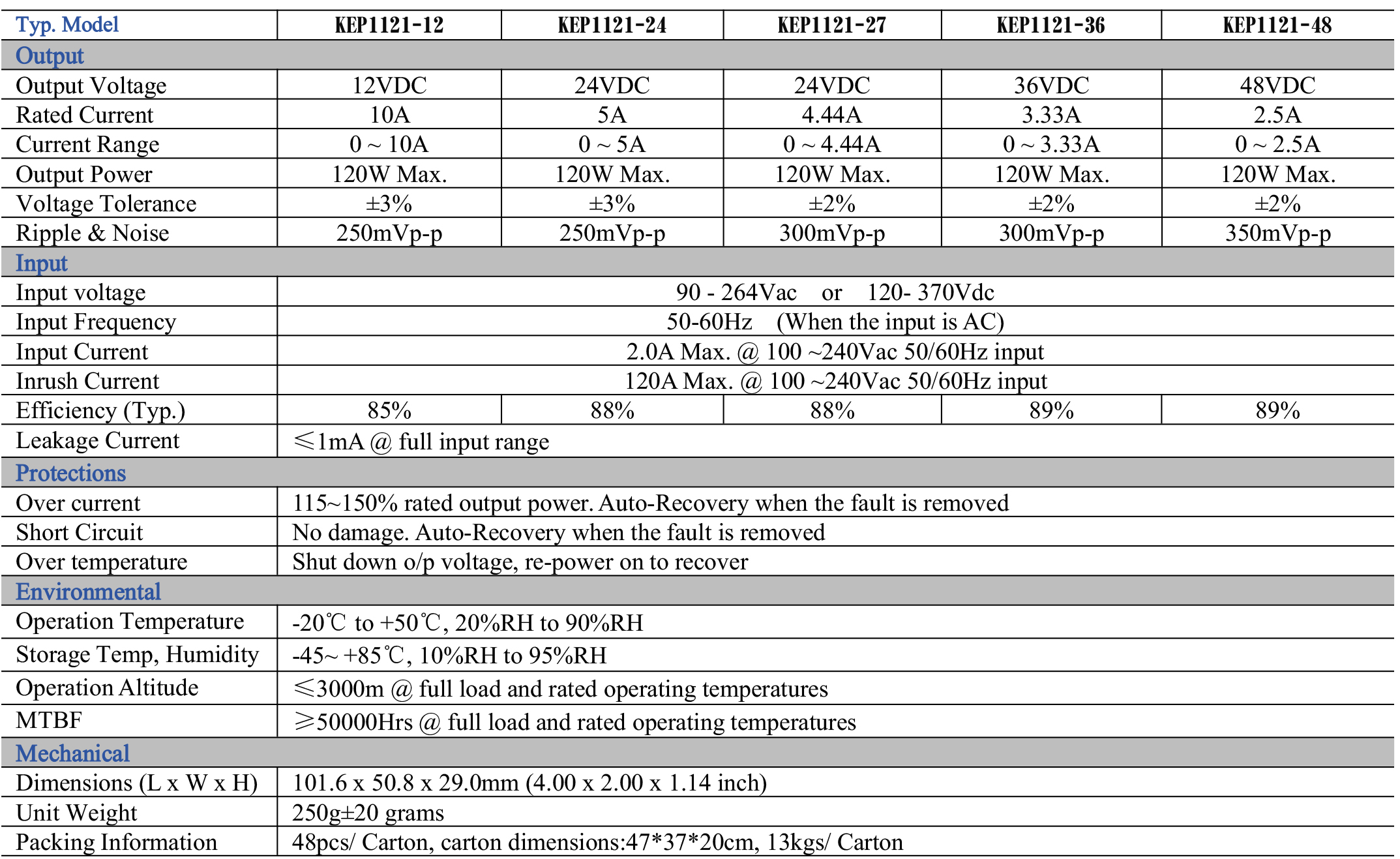

It is a highly reliable and quality 120W open frame switching power supply solution with wide range 90-264Vac input and designed strictly according to the international safety standards. It’s built-in PFC function with PF>0.95. The entire series supplies different models with output voltages ranging between 12Vdc and 52Vdc that can satisfy the demands for various types of consumer electronic devices, household electronic device, communication device and so on. The 120W open frame type switching power supply solution is built-in full protections of over load / short circuit and over voltage with small and compact size of 101.6 x 50.8 x 29mm. The entire series can operate at the ambient temperature between -20 and 50℃ without any derating under air convection.
