250W Dual Output

250W Dual Output Open Frame Switching Power Supply

Features
●  Input 90V to 264VAC, 50~60Hz suitable for worldwide use
●  Output voltage optional from 12V/5V, 24V/5V, 36V/5V, 48V/5V
●  Protections: Short Circuit / Overload / Over Voltage Protection
●  100% full load burn-in test for 2Hrs to make every unit reliable.
●  Built-in active PFC function, PF>0.92, efficiency up to 86%
●  Cooling by free air convection, operating temperature -10~40℃
●  Long life and high reliability design with 3 years warranty
Support Hotline:+86-0755-29665062

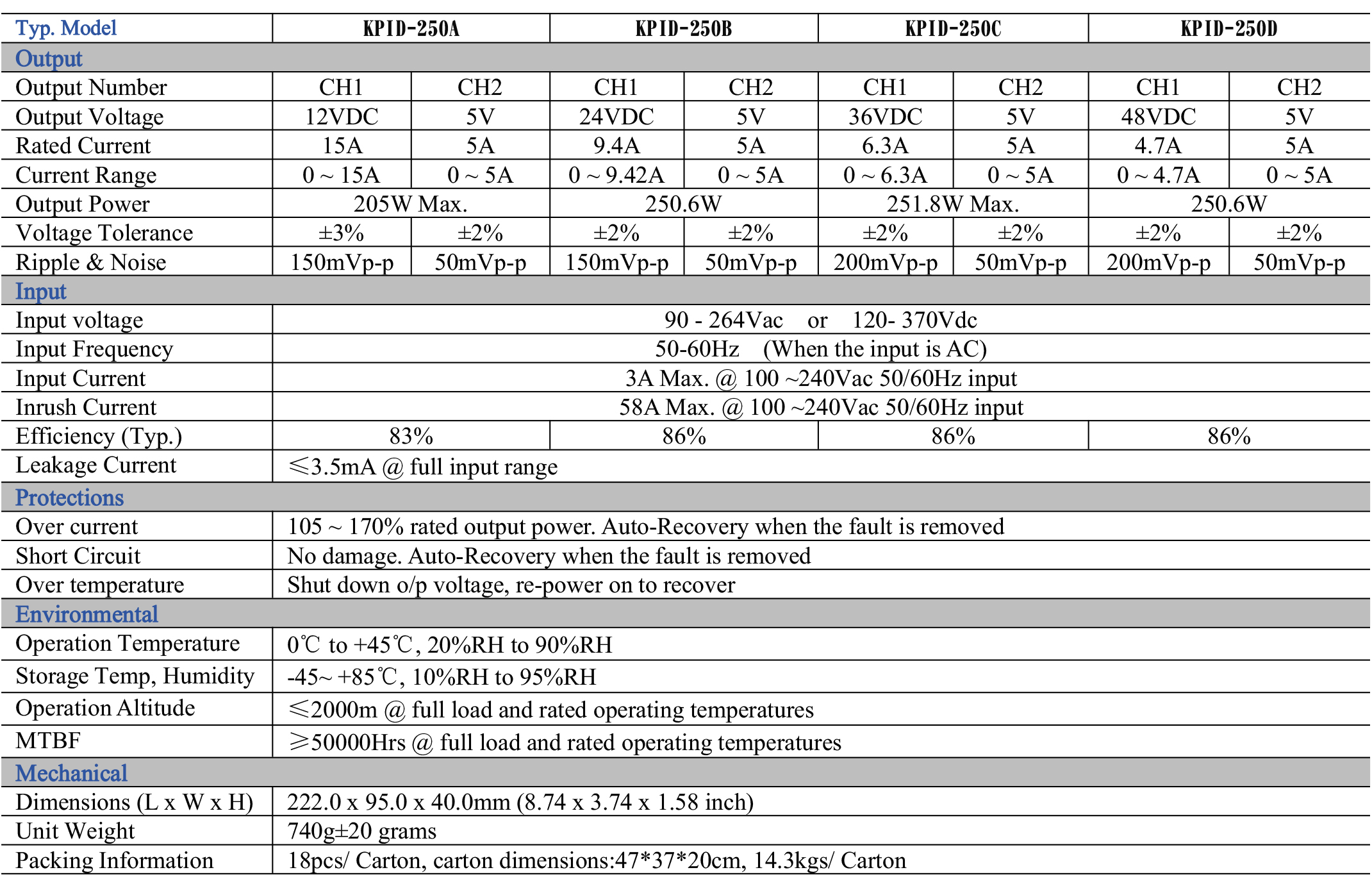

Technical Specification

Safety Standards
●  IEC62368-1 CB report for worldwide use
●  UL62368-1 + CAN/CSA 62368-1 for USA and Canada
●  EN 62368-1:2014/A11:2017 for European Union
●  AS/NZS 62368.1:2018 for Australia and New Zealand
●  J62368-1 for Japan and GB4943.1 for China market.

Product Description
It is a highly reliable dual output 250W open frame switching power supply solution with wide range 90-264Vac input and designed strictly according to the international safet1y standards. The entire series supplies four models with output voltages 12V/5V, 24V/5V, 36V/5V,and 48V/5V. The product is suitable for various types of consumer electronic devices, household electronic device, communication device and so on. The 250W dual output switching power supply solution is built-in full protections of over load / short circuit and over voltage and PFC function with PF>0.92.


250W Dual Output(PDF)  250W Dual Output Open Frame Switching Power Supply
