The manufacturer of MSP430G2413 is Texas Instruments.16 MHz MCU with 8KB Flash, 512B SRAM, comparator, UART/SPI/I2C, timer

Description for the MSP430G2413

The Texas Instruments MSP430 family of ultra-low-power microcontrollers consists of several devices featuring different sets of peripherals targeted for various applications. The architecture, combined with five low-power modes, is optimized to achieve extended battery life in portable measurement applications. The device features a powerful 16-bit RISC CPU, 16-bit registers, and constant generators that contribute to maximum code efficiency. The digitally controlled oscillator (DCO) allows wake-up from low-power modes to active mode in less than 1 µs.

The MSP430G2x13 and MSP430G2x53 series are ultra-low-power mixed signal microcontrollers with built-in 16-bit timers, up to 24 I/O capacitive-touch enabled pins, a versatile analog comparator, and built-in communication capability using the universal serial communication interface. In addition the MSP430G2x53 family members have a 10-bit analog-to-digital (A/D) converter. For configuration details see .

Typical applications include low-cost sensor systems that capture analog signals, convert them to digital values, and then process the data for display or for transmission to a host system.

Features for the MSP430G2413

●Low Supply-Voltage Range: 1.8 V to 3.6 V
●Ultra-Low Power Consumption
○Active Mode: 230 µA at 1 MHz, 2.2 V
○Standby Mode: 0.5 µA
○Off Mode (RAM Retention): 0.1 µA
●Five Power-Saving Modes
●Ultra-Fast Wake-Up From Standby Mode in Less Than 1 µs
●16-Bit RISC Architecture, 62.5-ns Instruction Cycle Time
●Basic Clock Module Configurations
○Internal Frequencies up to 16 MHz With Four Calibrated Frequency
○Internal Very-Low-Power Low-Frequency (LF) Oscillator
○32-kHz Crystal
○External Digital Clock Source
●Two 16-Bit Timer_A With Three Capture/Compare Registers
●Up to 24 Capacitive-Touch Enabled I/O Pins
●Universal Serial Communication Interface (USCI)
○Enhanced UART Supporting Auto Baudrate Detection (LIN)
○IrDA Encoder and Decoder
○Synchronous SPI
○I2C™
●On-Chip Comparator for Analog Signal Compare Function or Slope Analog-to-Digital (A/D) Conversion
●10-Bit 200-ksps Analog-to-Digital (A/D) Converter With Internal Reference, Sample-and-Hold, and Autoscan
●Brownout Detector
●Serial Onboard Programming, No External Programming Voltage Needed, Programmable Code Protection by Security Fuse
●On-Chip Emulation Logic With Spy-Bi-Wire Interface
●Package Options
○TSSOP: 20 Pin, 28 Pin
○PDIP: 20 Pin
○QFN: 32 Pin

Examples of MSP430G2413 applications in the field of power supply

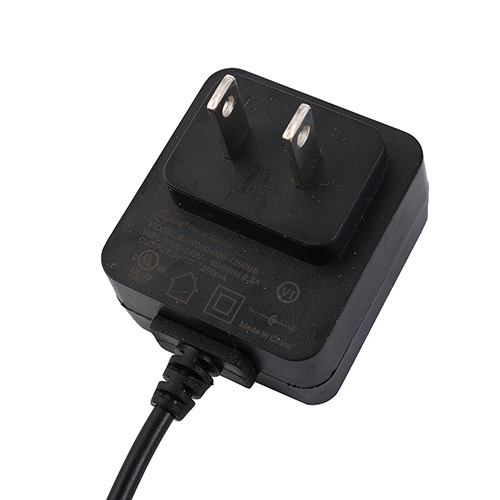

LM25011AMYX is used in Kinri's Plug-in Power Adapters of 6W Series.

Features(6W USA)

•  90~264VAC 50/60Hz Unitversal Input
•  Efficiency Level VI
•  Standby Power: 0.1W Max.
•  6 Watt Output Power Maximum
•  Over Current Protection
•  Short Circuit Protection
•  Leakage Current: 0.25mA Max.
•  Available for US, EU, UK and AU Versions
•  Safety Standards: IEC/EN/UL/AS/NZS62368, 61558, UL1310
•  CE, UL, FCC, SAA,PSB, RoHs, RACH Compliant
•  Product Dimensions:  43.6mm x 40.9mm x 22.9mm
