Shenzhen KINRI Energy Technology Co.,Ltd.

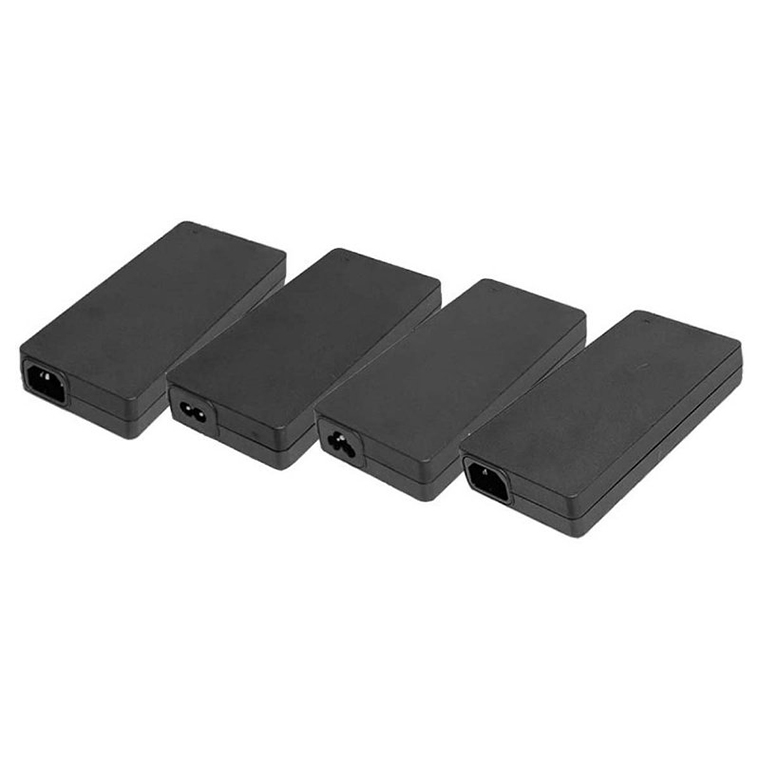

Desktop Power Adapter

48W

Features• 90~264VAC 50/60Hz Unitversal Input• Efficiency Level VI • Standby Power: 0.21W Max.• 48 Watt Output Power Maximum • Output Voltage Range 5V- 36V, 5A Max.• Over Current Protection • Short Circuit Protection• Leakage Current: 0.25mA Max.• Input Connector: C8• Safety Standards: IEC/EN/UL/AS/NZS62368• CE, UL, FCC, SAA, CCC, UKCA RoHs, REACH Compliant • Product Dimensions: 97mm x 45mm x32mm
65W

Features• 90~264VAC 50/60Hz Unitversal Input• Efficiency Level VI • Standby Power: 0.21W Max.• 65 Watt Output Power Maximum • Output Voltage Range 5V- 48V, 7A Max.• Over Current Protection • Short Circuit Protection• Leakage Current: 0.25mA Max.• Available for C8 and C14• Safety Standards: IEC/EN/UL/AS/NZS62368 61558, UL1310• CE, UL, FCC, SAA, PSE, KC, CCC, UKCA RoHs, REACH Compliant • Product Dimensions: 117.3mm x 50.3mm x33.5mm
90W

Features• 90~264VAC 50/60Hz Unitversal Input• Build in Power Factor Correction: >0.95• Efficiency Level VI • Standby Power: 0.21W Max.• 90 Watt Output Power Maximum • Output Voltage Range 5V- 48V, 7.5A Max.• Over Current Protection • Short Circuit Protection• Leakage Current: 0.25mA Max.• Available for C8 and C14• Safety Standards: IEC/EN/UL/AS/NZS62368 61558• CE, UL, FCC, SAA, PSE, KC, CCC, UKCA RoHs, REACH Compliant • Product Dimensions: 172.7mm x 72.3mm x33mm
120W

Features• 90~264VAC 50/60Hz Unitversal Input• Build in Power Factor Correction: >0.95• Efficiency Level VI • Standby Power: 0.21W Max.• 120 Watt Output Power Maximum • Output Voltage Range 5V- 48V, 7.5A Max.• Over Current Protection • Short Circuit Protection• Leakage Current: 0.25mA Max.• Available for C8 and C14• Safety Standards: IEC/EN/UL/AS/NZS62368 61558• CE, UL, FCC, SAA, UKCA RoHs, REACH Compliant • Product Dimensions: 172.7mm x 72.7mm x33mm
200W

Features• 100-240VAC Universal Input• 200 Watt Output Power Maximum • Output Voltage Range 12V- 56V, 14A Max.• LED Indicator• Active PFC Function• Protections： Short circuit / Over Voltage / Over current /Over temperature• Energy Efficiency Level VI or CoC Tier 2• MTBF > 100,000 hours• No Load Power Consumption ≤ 0.21W (VI), ≤ 0.15W (Tier II)• Safety Standards: IEC/EN/UL/AS/NZS62368• CE, UL, FCC, SAA, CCC, UKCA RoHs, REACH Compliant • Product Dimensions: 151mm x 75.8mm x 25.4mm
250W

Features• 100-240VAC Universal Input• 250 Watt Output Power Maximum • Output Voltage Range 12V- 56V, 18A Max.• LED Indicator• Active PFC Function• Protections： Short circuit / Over Voltage / Over current /Over temperature• Energy Efficiency Level VI or CoC Tier 2• MTBF > 50,000 hours• No Load Power Consumption ≤ 0.21W (VI), ≤ 0.15W (Tier II)• Safety Standards: IEC/EN/UL/AS/NZS62368• CE, UL, FCC, SAA, PSE, KC, CCC, UKCA RoHs, REACH Compliant • Product Dimensions: 182mm x 84.5mm x 46mm
250W (Ultrathin)

Features• Slim Size• 100-240VAC Universal Input• 250 Watt Output Power Maximum • Output Voltage Range 12V- 56V, 17.5A Max.• Active PFC Function• Protections:Short circuit / Over voltage / Over current Over temperature• Energy Efficiency L evel VI or CoC Tier II• No Load Power Consumption≤0.21W (VI),≤0.15W (Tier I)• MTBF > 50,000 hours• Safety Standards: IEC/EN/UL/AS/NZS62368• CE, UL, FCC, CB RoHs, REACH Compliant • Product Dimensions: 170mm x 84mm x 30mm
330W

Features• 100-240VAC Universal Input• 330 Watt Output Power Maximum • Output Voltage Range 12V- 56V, 25A Max.• LED Indicator• Active PFC Function• Protections： Short circuit / Over Voltage / Over current /Over temperature• Energy Efficiency Level VI or CoC Tier 2• MTBF > 50,000 hours• No Load Power Consumption ≤ 0.21W (VI), • Safety Standards: IEC/EN/UL/AS/NZS62368• CE, UL, FCC, CB RoHs, REACH Compliant • Product Dimensions: 197.7mm x 102mm x 51mm
330W (Ultrathin)

Features• Ultrathin 28mm• 100-240VAC Universal Input• 330 Watt Output Power Maximum • Output Voltage Range 12V- 56V, 25A Max.• LED Indicator• Active PFC Function• Protections： Short circuit / Over Voltage / Over current /Over temperature• Energy Efficiency Level VI • MTBF > 50,000 hours• No Load Power Consumption ≤ 0.5W (VI), • Safety Standards: IEC/EN/UL/AS/NZS62368• CE, UL, FCC, CB RoHs, REACH Compliant • Product Dimensions: 200mm x 100mm x 28mm
