Switching Power Supply

15V 4.6A 70W Switching Power Supply

Features
●  Input voltage 176 ~ 264VAC 50/60Hz or 200~360VDC
●  Output voltage select able from 5Vdc to 24Vdc for 70W series
●  Protections: Short Circuit / Overload / Over Voltage Protection
●  100% full load burn-in test for 2Hrs to make every unit reliable
●  All using high quality 105℃ long life electrolytic capacitors
●  Output voltage is adjustable by +/-10% of the rated output
●  Efficiency is no less than 82% and 2 years guarantee.
Support Hotline:+86-0755-29665062

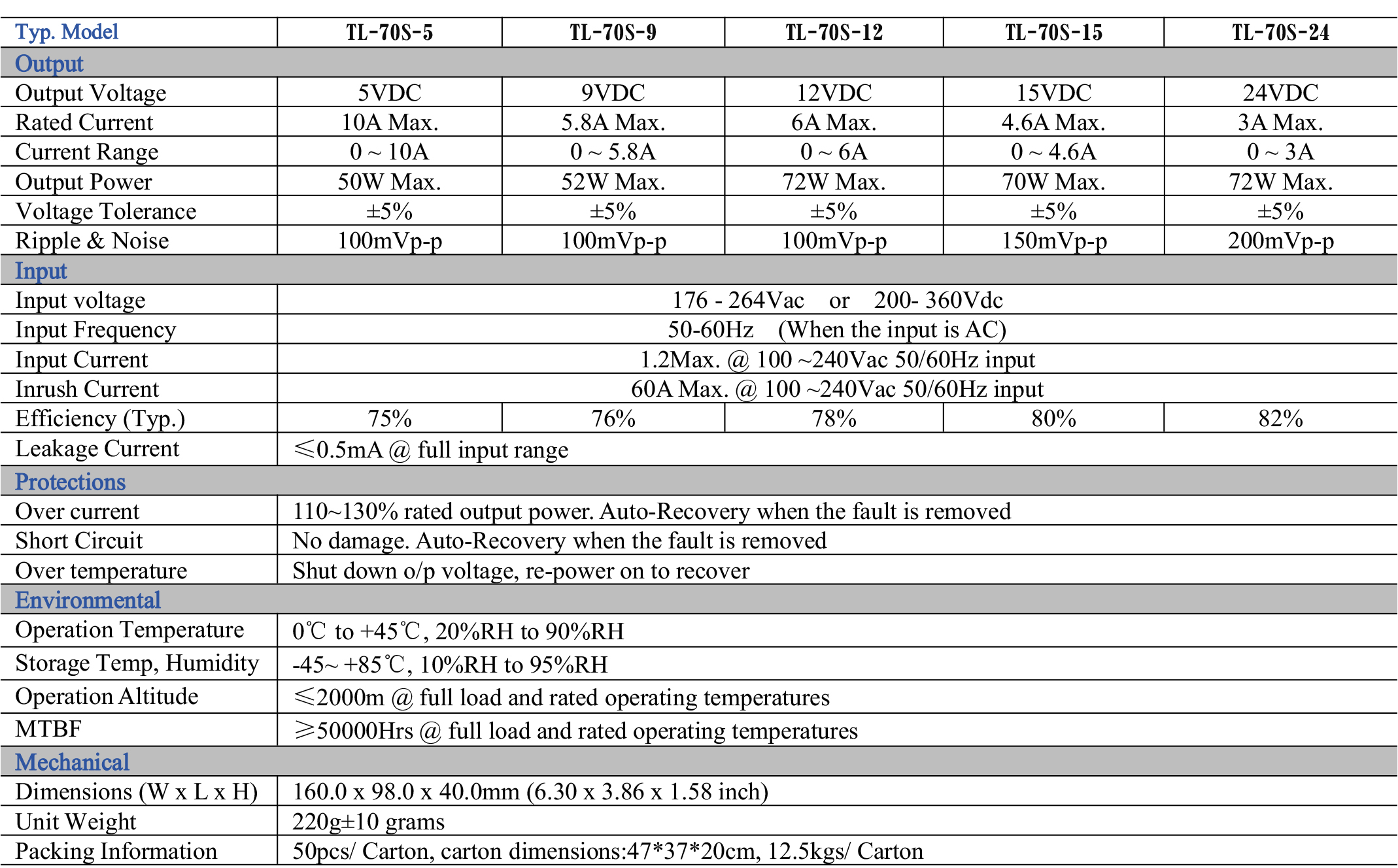

Technical Specification

Safety Standards
●  IEC62368-1 CB report for worldwide use
●  UL62368-1 + CAN/CSA 62368-1 for USA and Canada
●  EN 62368-1:2014/A11:2017 for European Union
●  AS/NZS 62368.1:2018 for Australia and New Zealand
●  J62368-1 for Japan and GB4943.1 for China market.

Product Description
It is a low cost and reliable 15Vdc 4.6A 70W single constant voltage output switching power supply solution with 176-264Vac or 200 - 360Vdc input. The product is designed and manufacturer strictly according to the international safety standards. The output voltage is adjustable by the by +/-10% of rated output voltage.

This 15Vdc 4.6A power supply is suitable for various types of CCTV, EV Charging stations, Gate systems,  industrial control system, mechanical and electrical equipment and so on. The switching power supply utilizes aluminum alloy housing with cellular shape cover which is better for free air convection cooling with dimensions of 160 * 98* 40mm.


15V 4.6A 70W Switching Power Supply(PDF) 15V 4.6A 70W Switching Power Supply
